The first supercharged car I drove on a daily basis was a '54 Ford with a 312 swapped in. I used the same blower on my then-new '65 Mustang. My first turbo car came along in the '70s and I don't believe I'll do another performance car of any sort without a pair of turbos.
An n/a engine that makes 800 HP will easily enough make thrice that amount with a pair of hairdryers attached. e85 is readily available and works very well with a bit of spray in addition to the turbos---you see where I'm going. Thus my comment regarding block strength.
(The engine in the Lincoln LS I used to set the E/F Competition Coupe/Sedan record in ECTA racing is a Jaguar design---Ford owned Jaguar at the time---and the aluminum block was designed with water jackets that only extend down the cylinder walls a bit past where the ring-pack sets when the piston is at TDC. Daily driver vehicles are commonly found with the bottoms of the water jackets silted full. There is no contribution in heat extraction from this area and no support from that silted-in area either. Why not fill it in at the foundry?)
KS
Logged
jayb
Administrator
Hero Member
Posts: 7406
Re: FE Power Cylinder Heads
«
Reply #106 on:
March 11, 2019, 10:18:24 AM »

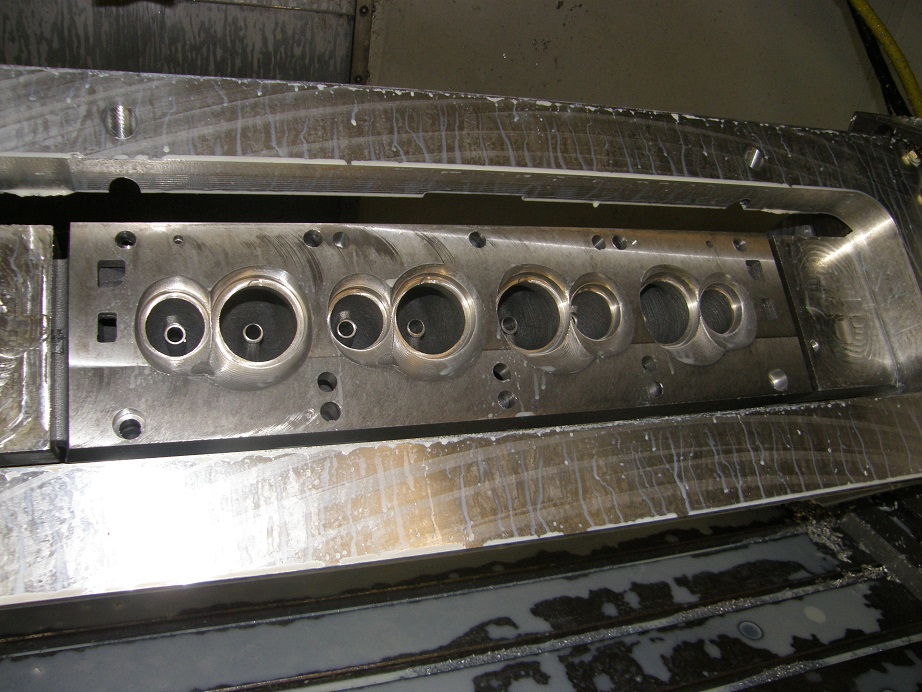

Couldn't resist posting a couple of teaser pics of my cylinder head in process on the CNC machine. I'm waiting for some tooling to arrive in the next couple days, and working on another fixture I need to put in the spark plug holes, but I should be able to have the machining programs and the first head done by the end of the week. I will post pictures of the finish-machined head, and also some pictures of the first intake manifold castings, next weekend - Jay
Logged
Jay Brown
- 1969 Mach 1, Drag Week 2005 Winner NA/BB, 511" FE (10.60s @ 129); Drag Week 2007 Runner-Up PA/BB, 490" Supercharged FE (9.35 @ 151)
- 1964 Ford Galaxie, Drag Week 2009 Winner Modified NA (9.50s @ 143), 585" SOHC
- 1969 Shelby Clone, Drag Week 2015 Winner Modified NA (Average 8.98 @ 149), 585" SOHC
machoneman
Hero Member
Posts: 3853
Re: FE Power Cylinder Heads
«
Reply #107 on:
March 11, 2019, 12:40:38 PM »
Looks very cool Jay!
Logged
Bob Maag
Chrisss31
Full Member
Posts: 149
Re: FE Power Cylinder Heads
«
Reply #108 on:
March 11, 2019, 12:41:13 PM »
Very cool!!
Logged
e philpott
Hero Member
Posts: 923
Re: FE Power Cylinder Heads
«
Reply #109 on:
March 11, 2019, 01:16:27 PM »
Beautiful
Logged
fryedaddy
Hero Member
Posts: 1253
Re: FE Power Cylinder Heads
«
Reply #110 on:
March 11, 2019, 02:22:53 PM »
they look like there going to flow bigtime.Jay,i hope they are a big success.they sure do look impressive.
Logged
1966 comet caliente 428 4 speed owned since 1983 1973 f250 ranger xlt 360 4 speed papaw bought new
WConley
Hero Member
Posts: 1160
No longer walking funny!
Re: FE Power Cylinder Heads
«
Reply #111 on:
March 11, 2019, 03:45:00 PM »
You've got a lot of work in those fixtures.
Best of luck bringing this cool project home!
- Bill
Logged
A careful study of failure will yield the ingredients for success.
jayb
Administrator
Hero Member
Posts: 7406
Re: FE Power Cylinder Heads
«
Reply #112 on:
March 11, 2019, 04:03:10 PM »
You're not kidding Bill, the main plate of the fixture was a $550 block of stress-relieved, cast aluminum. Took me almost an entire week to machine that...
Logged
Jay Brown
- 1969 Mach 1, Drag Week 2005 Winner NA/BB, 511" FE (10.60s @ 129); Drag Week 2007 Runner-Up PA/BB, 490" Supercharged FE (9.35 @ 151)
- 1964 Ford Galaxie, Drag Week 2009 Winner Modified NA (9.50s @ 143), 585" SOHC
- 1969 Shelby Clone, Drag Week 2015 Winner Modified NA (Average 8.98 @ 149), 585" SOHC
Ghoughton
Jr. Member
Posts: 54
Re: FE Power Cylinder Heads
«
Reply #113 on:
March 11, 2019, 06:41:21 PM »
Looking fantastic! I absolutely love the “no compromise” exhaust
Logged
bsprowl
Full Member
Posts: 213
Re: FE Power Cylinder Heads
«
Reply #114 on:
March 11, 2019, 07:12:10 PM »
I love it. I want a set so bad...
Logged
feadam
Jr. Member
Posts: 99
Re: FE Power Cylinder Heads
«
Reply #115 on:
March 11, 2019, 07:37:57 PM »
jay
will these heads require special pistons?
Logged
jayb
Administrator
Hero Member
Posts: 7406
Re: FE Power Cylinder Heads
«
Reply #116 on:
March 11, 2019, 09:19:29 PM »
Probably, unless you run a very mild cam. The valves are moved to a better location in the cylinder, and the valve angle has been changed. A normal FE piston valve relief won't match up with the valve location on these heads.
«
Last Edit: March 11, 2019, 10:36:44 PM by jayb
»
Logged
Jay Brown
- 1969 Mach 1, Drag Week 2005 Winner NA/BB, 511" FE (10.60s @ 129); Drag Week 2007 Runner-Up PA/BB, 490" Supercharged FE (9.35 @ 151)
- 1964 Ford Galaxie, Drag Week 2009 Winner Modified NA (9.50s @ 143), 585" SOHC
- 1969 Shelby Clone, Drag Week 2015 Winner Modified NA (Average 8.98 @ 149), 585" SOHC
cammerfe
Hero Member
Posts: 1659
Re: FE Power Cylinder Heads
«
Reply #117 on:
March 11, 2019, 10:22:03 PM »
My tongue is hangin' out so far it's left a spitty spot on my shirt front.
KS
Logged
fryedaddy
Hero Member
Posts: 1253
Re: FE Power Cylinder Heads
«
Reply #118 on:
March 12, 2019, 01:32:02 AM »
man those exhaust ports look big.what size header tube will these heads use
Logged
1966 comet caliente 428 4 speed owned since 1983 1973 f250 ranger xlt 360 4 speed papaw bought new
jayb
Administrator
Hero Member
Posts: 7406
Re: FE Power Cylinder Heads
«
Reply #119 on:
March 12, 2019, 07:45:19 AM »
At the outlet they are about 1-7/8" diameter, so a 2" OD header tube should be a perfect fit.
Logged
Jay Brown
- 1969 Mach 1, Drag Week 2005 Winner NA/BB, 511" FE (10.60s @ 129); Drag Week 2007 Runner-Up PA/BB, 490" Supercharged FE (9.35 @ 151)
- 1964 Ford Galaxie, Drag Week 2009 Winner Modified NA (9.50s @ 143), 585" SOHC
- 1969 Shelby Clone, Drag Week 2015 Winner Modified NA (Average 8.98 @ 149), 585" SOHC
