FE Technical Forum / Re: Torque converter
« on: November 07, 2026, 12:06:32 AM »
I see, the 16” rims with 26” tires and 18 or 19 pounds of air are going to be stiffer than the typical 30” slicks you see on almost all the cars in the stock and super stock pits. That’s probably why you had some tire spin, and they may even spin a little sometimes that you don’t notice giving you the 1.60’s 60 foot.
A lot of guys run the timing on their aluminum heads around the 33-34, Blair advised me to run more advance with my combo. Do you run pump gas or race fuel? Racing fuel requires a little more timing than pump gas because it burns a little slower
You could send the converter back to ATI and ask them to increase the stall some.
I think your car would benefit a lot with more stall and timing. Next would be to try a taller tire and gearing. Did you keep the 4.11’s ?

2
FE Technical Forum / Re: Torque converter
« on: November 06, 2026, 12:01:18 PM »
Joel, I can’t run a trans brake in the stocker because of the rules. I did have one in my super-gas Mustang with the tunnel port and the power glide. I did not have a 2step on the car so it was stage set the button and put it to the floor when both cars were staged. The trans brake will hold the car slightly below the converter flash point. My 8” 5000 stall converter actually stalled to about 4800-4900 sitting on the brake. You could test it without a 2step to see what the stall is.
On your 60’ times, are you still running 3.70 gears? What size tire and where is your timing set?

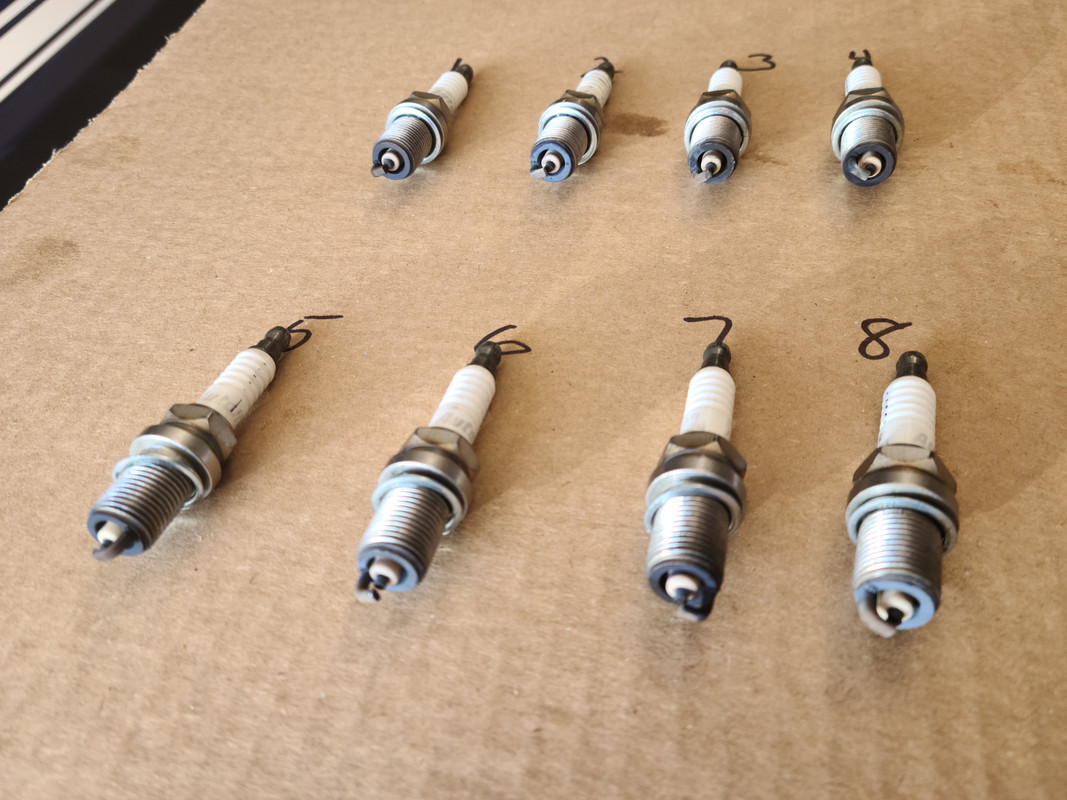

I assume you have full advance in by about 2500 rpm, and if you only at 33-34 degrees you may be too low for the cam and combination. Iron heads usually want more timing than aluminum but you really want to read your plugs and make some passes bumping it up until it slows down.
For reference my car at 3,280lb leaves about 1.36-1.39 60’ and I feel I’m a little slow and I’m trying to pick it up to low 1.30’s
Combination - 428 .060 over, stock Edlebrock heads, Shelby intake, 850 vacuum secondary carb, stock compression and cam lift. C-4 8” ATI converter, 4.86 gear 29.5 tall tires, Cal Tracs set in the middle no preload. Timing currently around 37 degrees, still experimenting.

3
FE Technical Forum / Re: ARP Rocker Shaft Studs - finger tight or torque?
« on: November 05, 2026, 10:59:08 AM »
Same, finger tight no loctite, nuts to spec. T&D  street version Edlebrock aluminum heads 7,300rpm no problems with bolts or valve lash. 🤞

4
FE Engine Dyno Results / Re: BP 475 FE For My Mach 1
« on: October 18, 2026, 12:15:08 AM »
Not sure what you’re looking at in the fuel pump area, I went Magnafuel MP-4601.  So, adjustable bypass, 10AN in and out, and the volume I wanted, then an adjustable 4 port regulator at the engine, so far very pleased.

Wicked pump gas engine.
Might need more gear? How tall are the slicks?
Congrats!

I have 28" slicks, and I don't want to go modifying my wheelwells, so likely stuck with that size, although I may be able to pick up a couple of inches if I relocate the rear. My Currie housing is narrowed 2" so I could try and keep things tucked in, and I have clearance with my springs with the backspacing on my rims, so that's not an issue. Currently have 4.30 gears, which puts me through the traps at 6500 with my current tires and combo. I may be able to keep that gearing with the goal of going through at 7500, but I'll just have to wait and see how it plays out.

I think 69’s are about the same as ‘67 & ‘68 wheel well openings. (Correct me if I’m wrong) I didn’t want to cut my wheel wells for larger tires so I started off with 29” bias slicks, they rubbed, too much tire growth. I went down to a 28” Hoosier and they clear fine but put me through the lights at 7600rpm with 4.86 gear. After 20 runs I took them off and went to a 30” radial from Hoosier the one with the smaller roll out. They are actually about 29.5 but don’t grow like the bias tires. They clear ok, have to be a little careful exiting the track sharply with any speed, so far so good no rub marks and dropped 300rpm.

5
I had a 68 Mustang 390 with the PS drop bracket and I drove the car for many many years and miles.

Never had any issue with the frame rail getting damaged in any way.
No cracking, buckling, etc.

In the ‘70’s myself and my friends combined for 5 cars with the drop bracket. Not a single problem, of course in the ‘70’s the cars weren’t that old so the frames and bolts didn’t have much if any rust or fatigue.

6
Member Projects / Re: NHRA 68 Stocker Project
« on: September 26, 2026, 11:28:43 AM »
Looking good, what color are you going to paint it?
I had family issue come up and couldn’t go to the Bakersfield double. Looks like Vegas divisional to try out the new headers and tune.
By the way I also have a set of ‘68 bumpers I’m not using do you want them?

7
FE Technical Forum / Tools
« on: September 10, 2026, 08:11:58 PM »
These are a must have for the top and bottom bolts, I wish I had picked them up sooner.


8
I put in 28 on the large tube Hooker race headers in a mustang. But then I’m a bit OCD.
New REF race headers only have 8 per side (top and bottom) easier than the Hookers but like the Hookers you have to install the individual tubes in the right order or your removing them multiple times until you get it right.
Ask me how I know. Haha!

9
FE Technical Forum / Re: Potentially dumb FE question number 2 for today.
« on: September 03, 2026, 10:34:22 PM »
If you have deep pockets just about anything is possible.




10
I just thought I would let everybody know unfortunately were not going to make it to the track this year. We fully intended to get at least one trip to the track. We had been running on the same pair of slick for 6 years and figured it was a good time to replace them, before we run the car. Unfortunately the race car money tree is pretty bare.
The biggest reason were not racing this year is I'm in the process of moving my shop to my house, and my race partner is relocating his shop also.
The good news here in Colorado is Bandimere is building us a new track.
Well that's it for now. GO FE POWER!!!!
Clint
What size slicks do you run?  I have some Hoosier 9x28x15 with about 20 runs. Bought them in 2024.
I have a brother in Parker CO and maybe can arrange to have them out there.  Asking $200 for the pair.

11
Member Projects / Re: NHRA 68 Stocker Project
« on: August 21, 2026, 05:07:45 PM »
I saw your PM and tried to send a response, did you get anything? My sent box is empty, I’m not sure why. There was a small box labeled “save a copy” that I forgot to check. Not sure if that was needed but my sent box doesn’t show anything.

12
Member Projects / Re: NHRA 68 Stocker Project
« on: August 20, 2026, 06:02:18 PM »
I did have a clutch pedal, not sure now, it came out of the car about 10yrs ago. I did lose or misplaced some stuff during the move to AZ. I will look through my boxes.
Brian’s car weighs about the same as mine because of the iron heads hp rating. I think he broke the transmission more times than the engines. He is persistent. I think he has put some of those problems behind him.
It will be interesting to see how well Don Keen does at Indy with his mustangs.

13
Member Projects / Re: NHRA 68 Stocker Project
« on: August 18, 2026, 10:43:33 PM »
I do plan on going to Vegas for my last divisional, I’m getting ready for the Bakersfield double in Sept. (24-27.)  I picked up some new REF headers last week and I’m hoping to pick up some et over the old Hookers.
Brian Pott from PV runs a ‘70 Mustang in B/S, runs real well with iron heads. Has been in the 10.0’s with it. If you touch 9.99 you need a full cage and some more safety stuff.
Do you need the trunk lid trim or the window seal? I can bring them with me to Las Vegas.

14
Member Projects / Re: NHRA 68 Stocker Project
« on: August 18, 2026, 12:58:37 PM »
Oh I forgot, I have a brand new fastback trunk lid molding (not sure why I have it ) and rear window glass rubber seal you can have if you need it.
Mike

15
Member Projects / Re: NHRA 68 Stocker Project
« on: August 18, 2026, 12:35:54 PM »
Coming along, looks like a lot of work. If you’re going to run A or B (even C) I would do a full cage while it’s apart. Remove everything from the chassis and interior that’s not needed and it should come in around 2,900lb. Add 170 for a driver then weight bars for class. My car in A needs to weigh 3,274 and when it was finished it was 2,920lb (I have 154lbs in the trunk)
By the way I was able to fit the 30x9 radial Hoosier slicks (the one with the smaller roll out) in the stock fenders without cutting. I needed to order the CalTrac with the extra 1 1/2” ride height to make it work. The bias tires 29x9 rub because of tire growth. Most of the Mustang racers cut some of the leading edge off for tire clearance. (Need to reconstruct the lip) I also used a BFH on the inside of the wheel wells by the rear seat sides and the fronts. Watch your rim back space because CalTrac leafs are a little wider than stock.
Hope your out testing soon.
